Lowrance Elite-7 CHIRP Base Fishfinder/Chartplotter Combos

Lowrance Elite-7 CHIRP Base Fishfinder/Chartplotter Combos Lowrance Elite-7 CHIRP Base Fishfinder/Chartplotter Combos Lowrance Elite-7 CHIRP Base Fishfinder/Chartplotter Combos
Close Window
Lowrance Elite-7 CHIRP Base Fishfinder/Chartplotter Combos
Lowrance Elite-7 CHIRP Base Fishfinder/Chartplotter Combos Lowrance Elite-7 CHIRP Base Fishfinder/Chartplotter Combos

Lowrance Elite-7 CHIRP Base Fishfinder/Chartplotter Combos

Lowrance Elite-7 CHIRP Base Fishfinder/Chartplotter Combos


Lowrance Elite-7 CHIRP Base Fishfinders/Chartplotters combine CHIRP Sonar with DownScan Imaging, built-in GPS antenna and basemap. CHIRP Sonar technology provides greater sensitivity, improved target resolution and superior noise rejection for clearer, easy-to-see bait fish and game fish targets.

CHIRP Sonar Advantages
  • Easier to identify and distinguish bait and game fish targets
  • Better target identification at greater depths
  • Mark fish clearly at faster boat speeds
Exclusive Lowrance Elite-7 CHIRP advantages
  • Multiple CHIRP frequencies from a single transducer
  • CHIRP sonar performance with a greater number of affordable transducers, including the Lowrance HDI Skimmer
  • View multiple CHIRP sonar settings on one display

More Features and Specifications

Product Video:

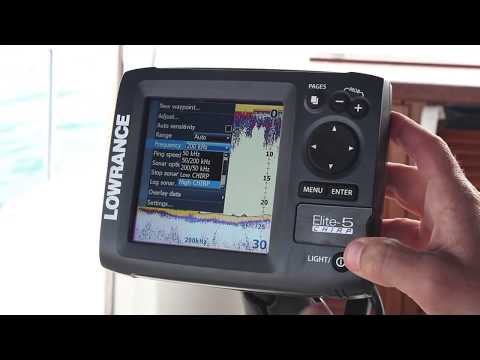

Lowrance Elite CHIRP Sonar Series Overview

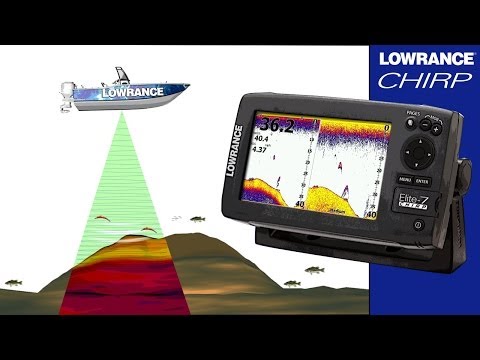

Lowrance CHIRP Sonar Basics


Send Page to Friend





ModelTD CodeDescriptionTransducerSonar Capabilities
000-11662-001LOW-0354Elite-7 CHIRP Fishfinder/Chartplotter Base ComboNo Transducer-
Price: USD $699.00
000-11663-001LOW-0355Elite-7 CHIRP Fishfinder/Chartplotter Base Combo83/200 kHz
Transom Mount
Medium and High CHIRP Sonar
Price: USD $699.00
000-11664-001LOW-0356Elite-7 CHIRP Fishfinder/Chartplotter Base Combo50/200 + 455/800 kHz
Transom Mount
Low and High CHIRP Sonar + DownScan Imaging
Price: USD $899.00
000-11665-001LOW-0357Elite-7 CHIRP Fishfinder/Chartplotter Base Combo83/200 + 455/800 kHz
Transom Mount
Medium and High CHIRP Sonar + DownScan Imaging
Price: USD $799.00


Exclusive Lowrance Elite-7 CHIRP Base features
  • DownScan Imaging™ provides picture-like images of fish-holding structure beneath a boat.
  • Selectable single-frequency sonar operation with award-winning Broadband Sounder™ performance.
  • Highly accurate, built-in GPS antenna plus a detailed U.S. map featuring more than 3,000 lakes and rivers and coastal contours to 1,000 feet.
  • Optional chart upgrades include Lake Insight™ and Nautic Insight™ PRO and HD, Navionics® HotMaps® Premium, Fishing Hotspots® PRO and Jeppessen C-Map Max-N.
  • Create your own map from real sonar data that you record with Insight Genesis™
  • Brilliant Elite color display for enhanced widescreen visibility and viewing detail in all conditions
  • DownScan Overlay™ technology overlays DownScan Imaging onto CHIRP Sonar
  • Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly
  • TrackBack™ to review recorded sonar history including structure, transitions or fish targets.
  • New page selector menu with quick access to all features using one-thumb operation
  • Multi-Window Display lets you quickly choose from pre-set page layouts - including a three-panel view with chart, CHIRP sonar ranges and DownScan Imaging.
  • Supported by Lowrance Advantage Service program

Lowrance Elite-7 CHIRP Base Specifications

Overview
Display7 in./178 mm (16:9) Full VGA SolarMax™ Plus
Resolution16-bit color TFT 800 x 480
BacklightingLED
Power Output: RMS (PTP)Max 250W RMS, 30,000W Peak to Peak (analog equivalent)
Operating Frequency455/800 kHz (DownScan Imaging™), Low, Med, High (CHIRP), 50 kHz/83kHz/200kHz (Narrow Band)
Languages31
Media PortOne (1) microSD slot
Operating Voltage12 vDC (10-17 vDC min-max)
WarrantyOne year


Display
Display Resolution800 x 480
Display Type16-bit color SolarMAX™ PLUS TFT
Display: BacklightingLED
Backlighting LevelsAdjustable Screen And Keypad
Display Size7 inches / 178 mm


Sonar
Depth AlarmYes
EchoSounder Frequencies83/200 kHz + 455/800 kHz
Shallow AlarmYes
Temperature ReadingsYes
Transducer TypeMultiple selections Lowrance and Airmar®
Max Depth per TypeDownScan Imaging™ at 455 kHz:  Max 300 ft / 91 m
CHIRP Sonar High Range/200 kHz:  1,000 ft / 305 m
CHIRP Sonar Med Range/83 kHz:  1000 ft / 305 m
CHIRP Sonar Low Range/50 kHz:  3,000 ft/914 m



Technical/Environmental
Waterproof Standard/ratingIPx7
Product Width9.26 in \ 235 mm
Product Depth3.0 in \ 76 mm
Product Height5.95 in \ 151 mm


Power
Power Supply (Supply Voltage)12 vDC (10-17 vDC min-max)


GPS Navigation
Navigation: Routes100
Navigation: Waypoint Storage3000
GPS Antenna TypeInternal high-sensitivity WAAS + EGNOS + MSAS (optional external antenna)
Plot TrailsUp to 100 trails - up to 10,000 points / trail
GPS AlarmsYes
Custom Mapping

Lake Insight™ and Nautic Insight™ PRO and HD, Insight Genesis™, Navionics® Gold and HotMaps® Premium, Fishing Hotspots® PRO and Jeppessen C-Map Max-N.

Background MappingWorld reference basemap or (U.S. models) over 3,000 enhanced lake maps with depth contour and shoreline detail, plus coastal depth contours/shoreline detail and spot depth soundings to 1,000 ft./305 m


Networking Connectors
NMEA OutputNMEA 0183 and NMEA 2000®


Other
Languages31
Output Power [kW]12 W (0.9 A @ 13 vDC)
Memory Card CapableYes
