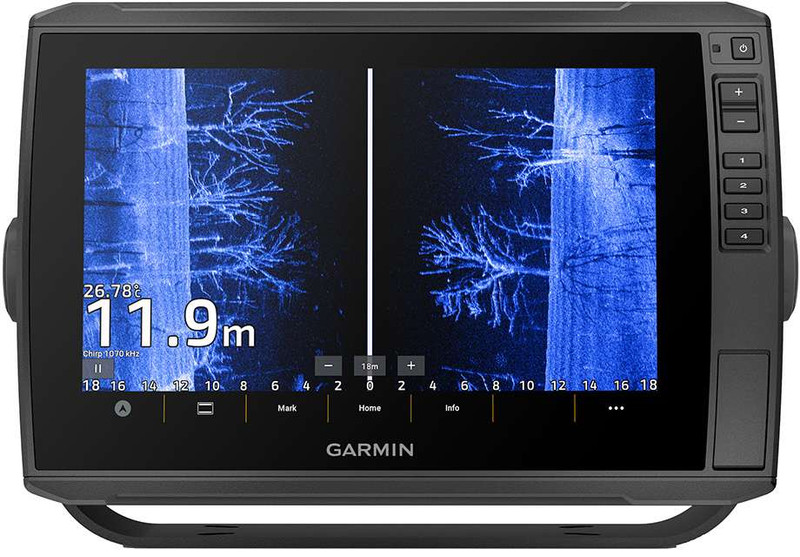

Garmin ECHOMAP Ultra 2 102sv Chartplotters

$0.00
SKU:
garmin-echomap-ultra-2-102sv-chartplotters
productid:
garmin-echomap-ultra-2-102sv-chartplotters
itemtype:
mainlanding
ratingcount:
0
pd-product-review-family:
garmin-echomap-ultra-2-102sv-chartplotters
prop65:
WARNING: Cancer and Reproductive Harm.
productCanonicalUrl:
https://www.tackledirect.com/garmin-echomap-ultra-2-102sv-chartplotters.html
Click here for more information

With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fish-finding capability at the angler's fingertips. This display's transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.

Features:

  • ECHOMAP Ultra 2 102sv with Worldwide Basemap
  • GT56UHD-TM Transducer
  • 10'' touchscreen
  • Supports livescope sonar, and more
  • Wirelessly network; share sonar, waypoints, and routes
  • Capture screen recordings to share fish catches
  • Multi-band GPS for improved position accuracy

Livescope Sonar Support

The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

Built-in UHD Sonar

Select models are bundled with a GT56 transducer, which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVu and SideVu scanning sonars for photo-like images of what's beneath the surface.

Vivid Color Palettes

High-contrast, vivid scanning sonar color palettes make it easier than ever to distinguish targets and structures.

Premium Map Upgrades

Bring a fresh new look and feel to the chartplotter with optional Garmin Navionics Vision+ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery, and more.

Wireless Networking

If users have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on the boat, users can wirelessly share information ‚ such as sonar, waypoints, and routes ‚ with them.

Stay Connected

Multi-Band GPS

Get improved position accuracy with multi-band GPS

NMEA 2000 Network Compatibility

Connect to heading sensors, autopilots, Fusion-Link audio systems, and more.

ActiveCaptain App

Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw Community data, and more.

Force Trolling Motor

Wirelessly connect to a Force trolling motor to navigate to waypoints, draw and follow routes, and more.

Take It With You

The quick-disconnect bail mount lets users quickly install and remove the unit.

In the Box:

  • ECHOMAP Ultra 102sv
  • Power/data cable
  • Bail mount with quick-release cradle
  • Protective sun cover
  • 8-pin transducer to 12-pin SOunder adapter cable
  • Hardware
  • Documentation

Specifications

General:

  • Dimension: 11.6'' x 7.7'' x 3.9'' (29.5 x 19.5 x 9.8 cm)
  • Weight: 4.0 lbs (1.8 kg)
  • Waterproof: IPX7
  • Touchscreen: Yes
  • Display Type: WXGA, IPSv
  • Display Size: 8.5'' x 5.4''; 10'' diagonal (21.7 x 13.6 cm; 25.4 cm diagonal)
  • Display Resolution: 1280 x 800 pixels
  • Mounting Options: Bail or flush
  • Input: Touchscreen with Keyed Assist

Maps and Memory:

  • Accepts Data Cards: 2 microSD cards
  • Waypoints: 5000
  • Track Points: 50,000
  • Tracks: 50 saved tracks
  • Navigation Routes: 100

Sensors:

  • GPS: Yes
  • GLONASS: Yes
  • Galileo: Yes
  • BeiDou: Yes
  • Has Built-In Receiver: Yes
  • Receiver: 10 Hz
  • NMEA 2000 Compatible: Yes
  • NMEA 0183 Compatible: Yes
  • Supports WAAS: Yes
  • Supports Multi-Band, Multi-Constellation GPS: Yes

Built-In Maps:

  • Built-In Auto Guidance+: Yes
  • Garmin Navionics+ Inland and Coastal: Yes (see Additional)
  • Tide Tables: Yes (see Additional)

Optional Map Support:

  • BlueChart g3: Yes
  • BlueChart g3 Vision: Yes
  • LakeVu g3: Yes
  • LakeVu g3 Ultra: Yes
  • Garmin Navionics+: Yes
  • Garmin Navionics+ Vision+: Yes
  • TOPO 100k: Yes
  • Standard Mapping: Yes
  • Garmin Quickdraw Contours: Yes

Chartplotter Features:

  • AIS: Yes
  • DSC: Yes
  • Supports Fusion-Link Compatible Radios: Yes
  • ActiveCaptain Compatible: Yes
  • Sailing Features: Yes

Electrical Features:

  • Power Input: 9 to 18 VDC
  • Typical Current Draw at 12 VDC: 2.5 A
  • Maximum Current Draw at 12 VDC: 5.0 A
  • Maximum Power Usage at 10 VDC: 36 W

Sonar Features:

  • Displays Sonar: Yes
  • Power Output: 600 W
  • Traditional Sonar (Dual Frequency/Beam): Built-in (Single Channel Chirp, 70/83/200 Khz, L, M, H Chirp)
  • ClearVu: Built-in 260/455/800/1000/1200 kHz
  • SideVu: Built-in 260/455/800/1000/1200 kHz
  • Panoptix Sonar: Yes
  • Livescope: Yes

Connections:

  • NMEA 2000 Ports: 1
  • Garmin Marine Network Ports: 2 (Large Connector)
  • 12-Pin Transducer Ports: 12-Pin Scanning Sonar
  • ANT+ (Connectivity): Yes
  • Garmin Wi-Fi Network (Local Connection): Yes
